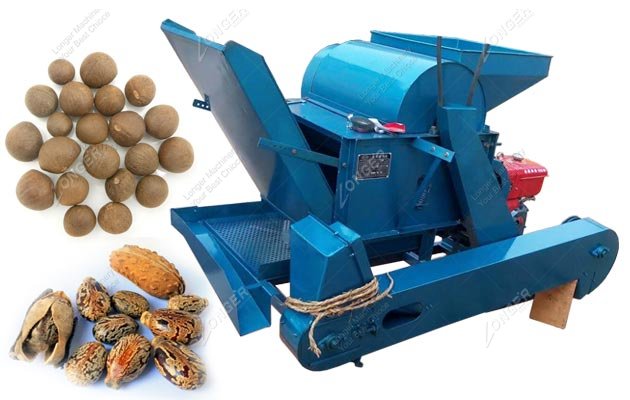

How dose a castor seed shelling machine work?

Castor seed shelling machine selected a 3 kW motor and a blower, motor, fan steering and stop by a down switch control. The motor rotates clockwise to feed the castor, which is mainly used to push the castor grains and troubleshoot the fan. The blower is used to blow off the debris from the threshing.

Motor through the pulley, CVT pulley, synchronous toothed pulley, so that the cutter, shaped tool rotation cutting castor, adjust the steering handle when working, can increase or decrease the cutter speed; another drive line by the two-level triangle Pulley, worm gear driven three sets of drum rotation.

The roller is equipped with a compression spring, a rubber roller, a plastic roller, in which two sets of rubber rollers are rotated, the rubber roller serves both as a function of clamping and a castor, and the spring can be appropriately adjusted according to the diameter of the castor Distance to suit the requirements of different sizes of castor.

A set of plastic rollers can hold the castor and deliver it to the waste bin. Tool and cutter lubrication using drip type oil cup, oil with olive oil. To make the structure compact, the cutterheads contain plastic bearings. The plastic bearing rotates on the shaft.

The main lubricating part of the castor seed huller is the worm gear, the worm and plastic bearing, the worm wheel and the worm are driven by the open type and lubricated with butter. The plastic bearing needs to be lubricated when running. The standard needle valve oil cup is used, the volume is 200ml, And this is equipped with a drip tubing, one end of the tubing with oil cups connected to the other end and the bearing on the oil tank connection. When working, you can adjust the size of the drip in the oil cup tubing. Lubricants are best to use olive oil, taking into account the price can be used to test other cooking oil.
